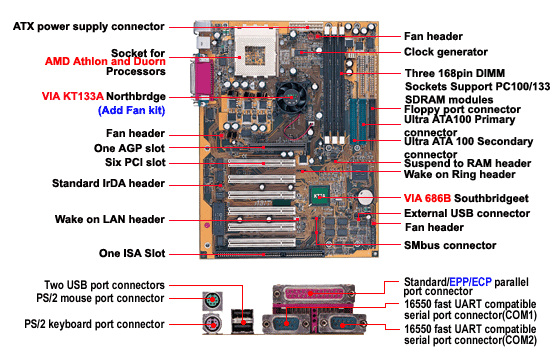

[AMD
Socket A Based ATX Mainboard
With Ultra DMA 100 & SoftMenuTMIII
Technology
]
ABIT's
Socket A motherboard is now
even better. Already offering
3 DIMM, 1 AGP, 1 ISA, and 6
PCI, the KT7A now also adds
support for 200MHz and 266MHz
FSB. The KT7A has everything
you could want in a top-of-the-line
mainboard. If that isn't enough,
add in Ultra DMA 100 support
and ABIT's SoftMenuTM
III. Your demands were heard,
met and then surpassed with
the KT7A.
[ Specifications
]
CPU
1. Supports
AMD-K7 Duron 600MHZ-850MHZ or
future 200MHz FSB Socket A Processors
2. Supports AMD-K7 Athlon 700MHZ-1.2GHZ
or 200/266MHz FSB Socket A Processors
3. Supports 200/266 MHz Alpha
EV6 bus for the AMD Athlon &
Duron Processors
Chipset
1. VIA KT133A /VIA 686B
2. Supports Advanced Configuration
and Power Management Interface
(ACPI)
3. Supports AGP 2X/4X (Sideband)
4. Supports 100/133MHz Memory
Bus Settings
Memory
1. Three 168-pin DIMM sockets
support PC100/PC133 SDRAM module
2. Supports up to 1.5 GB MAX.
(8, 16, 32, 64, 128, 256, 512MB
SDRAM)
System BIOS
1. SOFTMENUTM
III Technology to set CPU parameters
2. Award Plug and Play BIOS
3. Write-Protect Anti-Virus
function by AWARD BIOS
Multi I/O
Functions
1. 2 Bus
Master IDE Ports supporting
UDMA 33/66/100
2. PS/2 Keyboard and PS/2 Mouse
Connectors
3. 1x Floppy Port (up to 2.88MB)
4. 1x Parallel Port (EPP/ECP)
5. 2x Serial Ports
6. 2x USB Connectors
7. On board USB header for Two
extra USB channels
Miscellaneous
1. ATX
form factor
2. 1 AGP slot, 6 PCI slots and
1 ISA slots
3. Hardware monitoring - Including
Fan speed, Voltages, System
environment temperature
4. Built-in Wake on LAN/Wake
on Modem
5. Built-in IrDA TX/RX header
6. One Thermal Sensor Cable
Included |
